过充4.3V,过放2.4V,放电过流3.3A,充电过流3.3A，持续放电电流2A，采用SOT23-6封装，pin2pin市面上的DW06等芯片，广泛适用于小风扇等市场，常用于搭配4054,4056等线性充电芯片使用。
GENERAL DESCRIPTION
The XB5306A series product is a high
integration solution for lithium
ion/polymer battery protection.
XB5306A contains advanced power
MOSFET, high-accuracy voltage
detection circuits and delay circuits.
XB5306A is put into an ultra-small
SOT23-6 package and only one

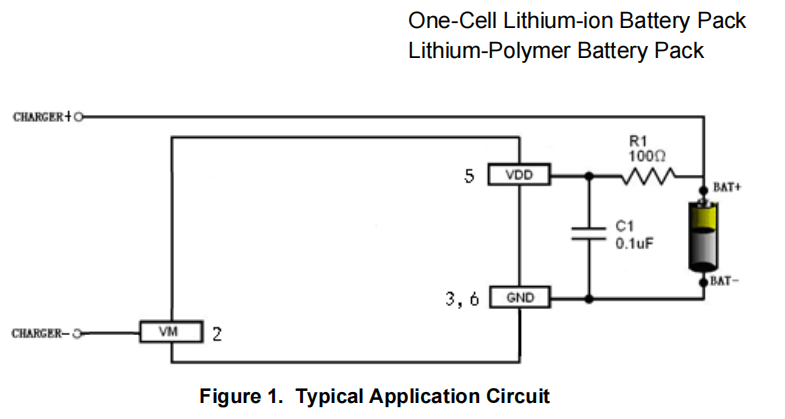

external component makes it an ideal
solution in limited space of battery pack.
XB5306A has all the protection functions
required in the battery application including
overcharging, overdischarging, overcurrent
and load short circuiting protection etc. The
accurate overcharging detection voltage
ensures safe and full utilization charging.
The low standby current drains little current
from the cell while in storage.
The device is not only targeted for digital
cellular phones, but also for any other
Li-Ion and Li-Poly battery-powered
information appliances requiring long
term battery life.
FEATURES
·
Protection of Charger Reverse
Connection
·
Protection of Battery Cell Reverse
Connection
·
Integrate Advanced Power MOSFET
with Equivalent of 58mΩ RSS(ON)
·
Ultra-small SOT23-6 Package
·
Only One External Capacitor
Required
·
Over-temperature Protection
·
Overcharge Current Protection
·
Two-step Overcurrent Detection:
-Overdischarge Current
-Load Short Circuiting
·
Charger Detection Function
·
0V Battery Charging Function
- Delay Times are generated inside
·
High-accuracy Voltage Detection
·
Low Current Consumption
- Operation Mode: 2.8μ A typ.
- Power-down Mode: 1.5μ A typ.
·
RoHS Compliant and Lead (Pb) Free
APPLICATIONS
One-Cell Lithium-ion Battery Pack
Lithium-Polymer Battery Pac
