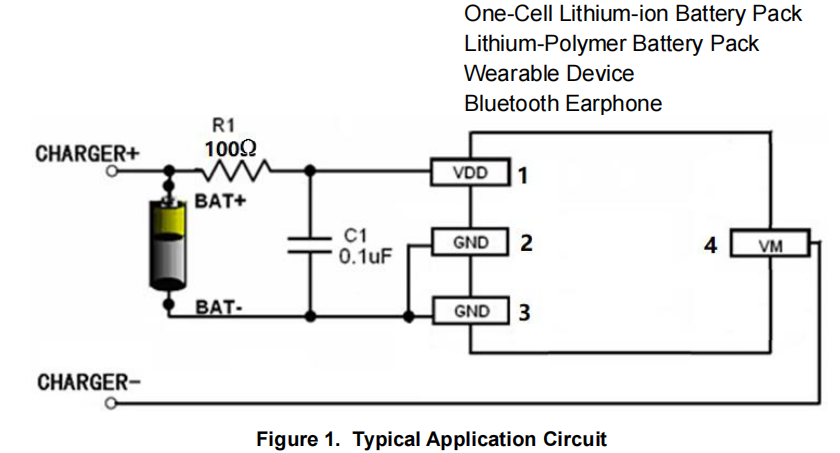

过充4.275-4.475V可选,过放2.8-3.0V可选,放电过流0.4A,充电过流0.4A,最大持续放电电流0.2A,DFN1*1封装,和赛芯所有同类型封装都直接pin,外围电路亦一样,一颗电阻一颗电容,适用于TWS耳机,智能穿戴等产品。
· Protection of Battery Cell Reverse
Connection
· Integrate Advanced Power MOSFET
with Equivalent of 44mΩ RDS(ON)
· DFN1X1x0.37-4 Package
· Low Overcharge Release Voltage
· Over-temperature Protection
· Overcharge Current Protection 0.4A
· Two-step Overcurrent Detection:
-Overdischarge Current 0.4A
-Load Short Circuiting
· Charger Detection Function
· 0V Battery Charging Function
- Delay Times are generated inside
· High-accuracy Voltage Detection
· Low Current Consumption
- Operation Mode:1.5μA Typ.
· RoHS Compliant and Lead (Pb) Free
