过充4.275-4.575V可选， 过放2.8V，充电过流0.8A，放电过流0.8A，持续放电电流0.4A，耐压16V，DFN2*2封装，适用于小容量电池产品以及保护板。
GENERAL DESCRIPTION
The XBR6096-55 Series product is a
high integration solution for lithium
ion/polymer battery protection.
XBR6096-55 Series contains advanced
power MOSFET, high-accuracy voltage
detection circuits and delay circuits.
XBR6096-55 Series is put into an ultra
small DFN2X2-6 package and only one
external component makes it an ideal
solution in limited space of battery pack.
XBR6096-55 Series has all the protection
functions required in the battery application
including overcharging, overdischarging,
overcurrent and load short circuiting
protection etc. The accurate overcharging
detection voltage ensures safe and full
utilization charging. The low standby
current drains little current from the cell
while in storage.
The device is not only targeted for digital
cellular phones, but also for any other
Li-Ion and Li-Poly battery-powered
information appliances requiring long
term battery life.
FEATURES
·
Protection of Charger Reverse
Connection
·
Protection of Battery Cell Reverse
Connection without external load
·
Integrate Advanced Power MOSFET
with Equivalent of 26mΩ RDS(ON)
·
Ultra-small DFN2X2-6 Package
·
Only One External Capacitor
Required
·
Over-temperature Protection
·
Overcharge Current Protection 0.8A
·
Two-step Overcurrent Detection:
-Overdischarge Current 0.8A
-Load Short Circuiting
·
Charger Detection Function
·
0V Battery Charging Function
- Delay Times are generated inside
·
High-accuracy Voltage Detection
·
Low Current Consumption
- Operation Mode: 3.0μA typ.
- Power-down Mode: 0.1μA max.
·
RoHS Compliant and Lead (Pb) Free

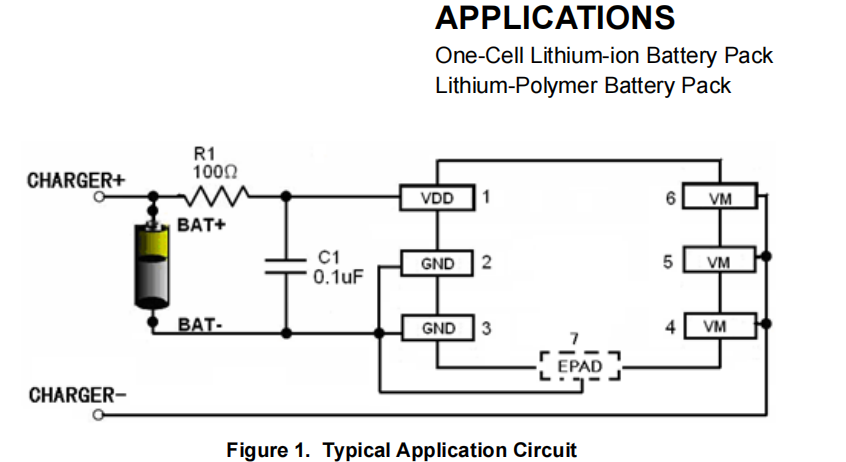

APPLICATIONS
One-Cell Lithium-ion Battery Pack
Lithium-Polymer Battery Pack
