电流300mA，输出1.2-3.6V, SOT23-5/DFN1*1-4封装可选，带EN脚，适用于助听器，蓝牙耳机，智能手表，无线充，智能电气电表等。
GENERAL DESCRIPTION
The HP6013 is a high accuracy, low noise, high speed,
low dropout CMOS Linear regulator with high ripple
rejection and fast discharge function. The device
offers a new level of cost effective performance in
cellular phones, surveillance system, Bluetooth,
wireless and other portable electronic devices.
HP6013 can provide product selections of output
value in the range of 1.0V~3.6V by every 0.1V step.
The current limiter's fold-back circuit also operates as
a short circuit protection and an output current
limiter at the output pin.

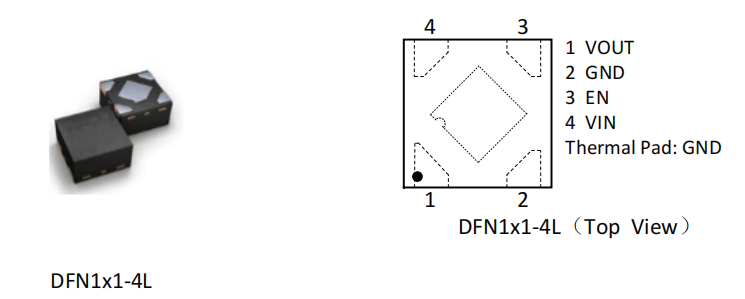

The HP6013 regulators are available in standard
SOT23-5L and DFN1x1-4L packages. Standard
products are Pb-free and Halogen-free.
FEATURES
⚫
Input voltage: 2.5V~6.5V
⚫
Output range: 1.0V~3.6V
(customized by every 0.1V step)
⚫
Maximum output current: 400mA @ VIN-
VOUT=0.5V
⚫
PSRR: 75dB @1KHz
⚫
Dropout voltage: 220mV @ IOUT=200mA
⚫
Quiescent current: 35μA Typ.
⚫
Shut-down current: < 1μA
⚫
Recommend capacitor: 1μF
⚫
Ultra-low output noise: 20μVRMS
APPLICATIONS
⚫
Digital cameras
⚫
Cellphones
⚫
Bluetooth and wireless handsets
⚫
Other portable electronic devices
