电流300mA，输出1.2-3.6V,采用DFN1*1-4封装，带EN脚，适用于助听器，蓝牙耳机，智能手表，无线充，智能电气电表等。
GENERAL DESCRIPTION
The HP6018 series are low dropout linear regulators
and optimized to provide a high-performance
solution for battery power system to delivery low
quiescent current. The device offers a new level of
cost-effective performance in cellular phones, laptop
and notebook computers, and other portable devices.
HP6018 can provide output value in the range of
1.2V~3.6V by every 0.1V step.
The HP6018 series are designed to make use of low
cost ceramic capacitors which ensure the stability of
the output current, and enhance the efficiency in
order to prolong the battery life of those portable
devices.
The HP6018 regulators are available in DFN1x1_4L
packages. Standard products are Pb-free and
Halogen-free.
FEATURES
⚫
Input voltage: 2.5V~6.5V
⚫
Output range: 1.2V~3.6V
(customized by every 0.1V step)
⚫
Output current: 300mA @ VIN-VOUT=0.5V
⚫
Dropout voltage: 100mV @ IOUT=100mA
⚫
Quiescent current: 1μA Typ.
⚫

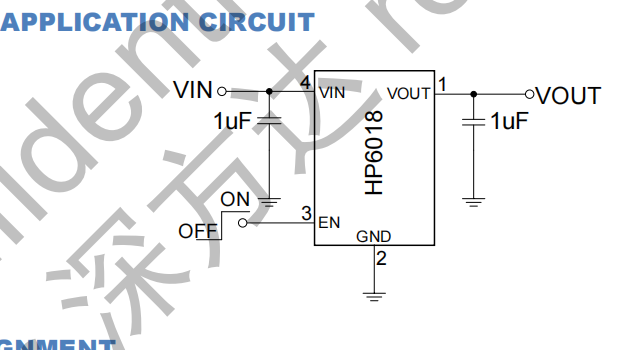

Recommend capacitor: 1μF
APPLICATIONS
⚫
Reference voltage source
⚫
Toys
⚫
Bluetooth, wireless handsets
⚫
Low Consumption Device
⚫
Others portable electronic device
