XBL6032-SM特点：
1，静态工作电流; 0.5uA，MAX=0.8uA
2，关机电流：1nA
3,充电过流：0.23A-0.37A（典型值0.3A）
4，放电过流：0.115A-0.185A（典型值0.15A）
5，过充电压：4.275±25mV（过充电压可调整，每次步进10mV，最大值4.6v，支持4.2V-4.5V平台）
6，过放电压：2.8V±35mV
7 ，管压降0V
8,带负载防电芯反接：0V可充支持带负载电芯反接
9，ESD:8000V
10，短路保护：0.35A-0.55A（典型值0.45A）
11，支持船运模式。
GENERAL DESCRIPTION
The XBL6032-SM Series product is a hi
gh integration solution for lithium-ion/polym
-er battery protection. XBL6032-SM Series
contains advanced power MOSFET, high
accuracy voltage detection circuits and del

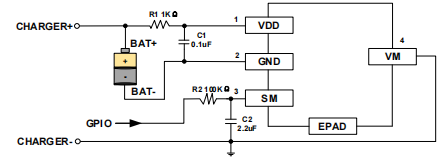

-ay circuits. XBL6032-SM Series is put into
an DFN1X1x0.37-4 package and external
MCU, GPIO signal to high level to enable
the chip to enter shipping mode makes it
an ideal solution in limited space of battery
pack.
XBL6032-SM Series has all the protectio
-n functions required in the battery applicati
-on including overcharging, over dischargin
-g, overcurrent and load short circuiting pro
-tection etc. The accurate overcharging det
-ection voltage ensures safe and full utilizat
-ion charging. The low standby current drai
-ns little current from the cell while in stora
ge.
The device is not only targeted for digital
cellular phones, but also for any other Li-Io
-n and Li-Poly battery-powered information
appliances requiring long-term battery life.
FEATURES
Protection of Battery Cell Reverse
Connection without external load
Control MOS of integrated shipping
mode
Support all pin rosin joint
Integrate Advanced Power MOSFET
with Equivalent of 55mΩ RSS(ON)
DFN 1x1x0.37-4Package
Reverse connection of charger is
supported
Overdischarge Current Protection
Charger Detection Function
0V Battery Charging Function
Delay Times are generated inside
High-accuracy Voltage Detection
Low Current Consumption
-Operation Mode:0.5μA typ.
-Power-down Mode: 30nA max.
RoHS Compliant and Lead (Pb) Free
Be suitable for 100% shipping mode
ESD HBM:8KV
APPLICATIONS
One-Cell Lithium-ion Battery Pack
Lithium-Polymer Battery Pack
Wearable Device
Bluetooth Earphone
