过充电压4.3V-4.475V可选，过放2.4V,放电过流3.3A,充电过流3.3A，持续放电电流2A，SOT23-5封装，适用于小风扇，充电仓等5V1A锂电池产品，常用语搭配4054,4056等线性充电芯片使用。
GENERAL DESCRIPTION
The XB5354 series product is a high
integration solution for lithium
ion/polymer battery protection. XB5354
contains advanced power MOSFET,
high-accuracy voltage detection circuits
and delay circuits. XB5354 is put into an
ultra-small SOT23-5 package and only
one external component makes it an
ideal solution in limited space of battery
pack.
XB5354 has all the protection functions
required in the battery application including
overcharging, overdischarging, overcurrent
and load short circuiting protection etc. The
accurate overcharging detection voltage
ensures safe and full utilization charging.
The low standby current drains little current
from the cell while in storage.
The device is not only targeted for digital
cellular phones, but also for any other
Li-Ion and Li-Poly battery-powered
information appliances requiring long
term battery life.
FEATURES
· Protection of Charger Reverse
Connection
· Protection of Battery Cell Reverse
Connection
· Integrate Advanced Power MOSFET
with Equivalent of 45mΩ RSS(ON)
· Ultra-small SOT23-5 Package
· Only One External Capacitor
Required
· Over-temperature Protection
· Overcharge Current Protection
· Two-step Overcurrent Detection:
-Overdischarge Current
-Load Short Circuiting
· Charger Detection Function
· 0V Battery Charging Function
- Delay Times are generated inside
· High-accuracy Voltage Detection
· Low Current Consumption
- Operation Mode: 2.8μA typ.
- Power-down Mode: 1.5μA typ.
·
RoHS Compliant and Lead (Pb) Free
APPLICATIONS

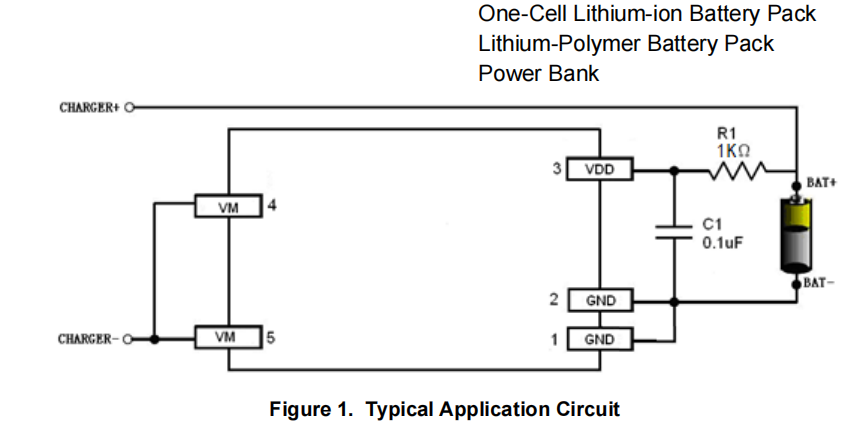

One-Cell Lithium-ion Battery Pack
Lithium-Polymer Battery Pack
