The JXP2302AVRG uses advanced trench technology to provide excellent RDS(ON), low gate charge and high density cell Design for ultra low on-resistance. This device is suitable for use as a load switch or in PWM applications.
GENERAL FEATURES
VDS =20V,ID =3A
RDS(ON)(Typ.)=46mΩ @VGS=2.5V
RDS(ON)(Typ.)=35mΩ @VGS=4.5V
High power and current handing capability
Lead free product is acquired
Surface mount package
APPLICATION
PWM applications
Load switch

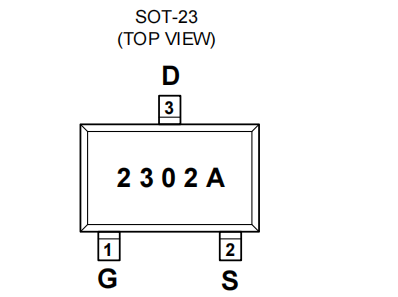

PACKAGE
SOT-23
