The JXP2301MRG uses advanced trench technology to provide excellent RDS(ON), low gate charge and high density cell Design for ultra low on-resistance. This device is suitable for use as
a load switch or in PWM applications.
GENERAL FEATURES
VDS =-20V,ID =-3.0A
RDS(ON)(Typ.)=85mΩ @VGS=-2.5V
RDS(ON)(Typ.)=70mΩ @VGS=-4.5V
High power and current handing capability
Lead free product is acquired
Surface mount package
APPLICATION
PWM applications
Load switch

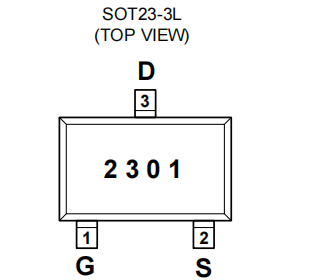

PACKAGE
SOT23-3L
