SOT23-5封装,内阻45mΩ,过充电压4.3V±50mV,过放电压2.4V±100mV,充电过流3A,放电过流3A,持续放电电流2.2A.
Features
• Protection of Charger Reverse Connection
• Protection of Battery Cell Reverse Connection
• Over-temperature Protection
• Overcharge Current Protection
• Two-step Overcurrent Detection:
Over Discharge Current
Load Short Circuiting
• Charger Detection Function
• 0V Battery Charging Function
• RoHS Compliant and Lead (Pb) Free
• 45mΩ Low RSS(ON) Internal Power
MOSFET
• Delay Times are generated inside
• High-accuracy Voltage Detection
• Low Current Consumption
Operation Mode: 2.5μA typ.
Power-down Mode: 1.5μA typ.
• Only One External Capacitor Required
• Available in SOT23-5 Package
• -40°C to +85°C Temperature Range
Applications
• One-Cell Li-ion Battery Pack
• Power Bank
• One-Cell Li-poly Battery Pack
• IOT Sensor/Electronic Toys
General Description
The RY2201 is a high integration solution for lithium-ion/polymer battery protection. RY2201 contains internal
power MOSFET, high-accuracy voltage detection circuits and delay circuits. RY2201 has all the protection
functions required in the battery application including overcharging, over discharging, overcurrent and load short
circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The
low standby current drains little current from the cell while in storage. The device is not only targeted for digital
cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring long
term battery life.

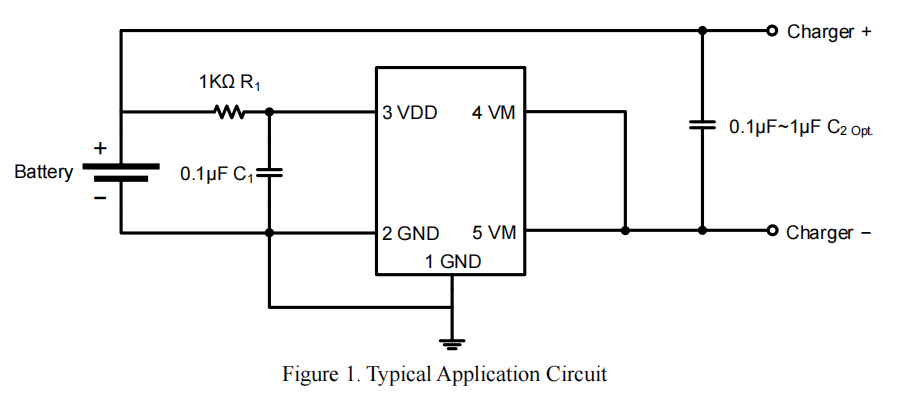

The RY2201 requires a minimal number of readily available, external components and is available in a space saving
SOT23-5 package.
